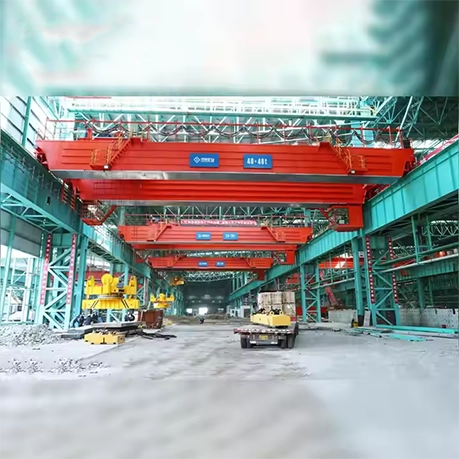

Hang Beam Double Girder Overhead Crane
Capacity:
5~50t, According to your demands
Lifting Height:
16m, According to your demands
Span:
34m, According to your demands
Voltage/Hertz:
According to your demands
Working Class:
A5,A6,A7
file Product manual download
Apply: The crane is suitable for loading, unloading and handling steel plates, section steels,coils and other materials in indoor or outdoor fixed spans of steel plants, shipyards, ports, storage yards and warehouses.
Authentication mark:
CCC
CE
Submit your demands:
Capacity:
Lifting Height:
Span:
Voltage/Hertz:
Working Class:
  • A5
  • A6
  • A7
SUBMIT
ONLINE CHAT
HOT PRODUCTS
Product Overview

This crane is equipped with a rotatable electromagnetic hanging beam, which is used for loading, unloading and handling steel plates, section steels, coils and other materials in steel plants, shipyards, ports, storage yards and other indoor or outdoor fixed spans. According to the user's requirements, it can provide:speed regulation (1:10 or greater),overload and alarm, remote control, PLC Control and fault detection, display, recording and printing systems of each mechanism.


The hook and carrier-beam are releasable connection,They are furnished with electromagnetic chuck or clincher or special group hook underneath to hoist things. There two layout forms of carrier-beam: perpendicular to the girder or parallel to the girder. It has certain anti swing function.Special lifting appliances such as electromagnetic suction cups and clamps can be carried under the hanging beam.


Product Features

1. Lightly and ingeniously structured

2. Easy for application

3. Strong magnetic attraction power

4. Safe in handling

5. For higher application requirements, extractable and 360 degree electromagnetic beam suspending system can be provided.

6. The lower rotating electromagnetic hanging beam crane is a kind of crane with rotating electromagnetic hanging beam as a hanger. Through the electromagnet fixed on the hanging beam, the crane is used to absorb and carry heavy objects.


FAQ

Q1: What's the information should I provide when inquiry?

A1: The more details or drawings,the better.Such as Lifting capacity, Lifting height,Span,Voltage or others special requirements.


Q2: Can you provide custom service?

A2: Yes, of course. We are manufacturer and we have our own engineer group.They can out customized design according to your requirement. You just need to tell us your requirements.


Q3: Are there professional technicians to assist in the installation?

A3: Yes. We have a professional installation team and have been to many countries to assist in installation. lf you need us to provide this service,please let us know in advance and we will provide you with the best solution.


Q4: How do you guarantee the quality?

A4: We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate.


Q5: What international certifications have your crane passed?

A5: Our crane has passed CE,ISO,GOST.SGS,TUV.BV.and so on.



Application Scenario

The crane is equipped with a rotatable hanging beam, which is suitable for loading, unloading and handling steel plates, section steels,coils and other materials in indoor or outdoor fixed spans of steel plants, shipyards, ports, storage yards and warehouses. QL bridge crane with carrier-beam is applícable to hoisting long section steel,bars, plates,scrap steel, mill coil and so on.


The crane has slewing carrier-beam, is applicable to the fixed span at indoor outdoors of steel mill, shipyard, port, yard and storage etc. It is used for loading, unloading and carrying steel plate, profile steel, and spool etc. It is especially applicable to lift material of different specifications and which needs Horizontal rotation, The carrier-beam is cross structure, which is reliable and has good safety features, and has a certain function of preventing swinging, The lower part of the carrier-beam can bring special lifting appliances, such as magnetic chuck and tongs etc.


Product Application Overview: Hang Beam Double Girder Overhead Crane


The Hang Beam Double Girder Overhead Crane is engineered for versatility and efficiency in material handling across various industrial settings. Its unique design features a rotatable hanging beam that enhances its operational capabilities, making it an ideal choice for loading, unloading, and transporting a variety of materials, including steel plates, section steels, coils, and other heavy items.


Key Applications:

Steel Plants: In steel manufacturing facilities, this crane is instrumental in managing heavy-duty tasks such as lifting and moving large steel sheets, bars, and coils. Its ability to rotate horizontally allows for precise placement, optimizing production processes.


Shipyards: Within shipbuilding environments, the crane facilitates the handling of significant components and materials, including ship hull sections and large machinery. The capability to maneuver heavy loads safely contributes to the efficiency of ship assembly and repair operations.


Ports and Terminals: The overhead crane is highly efficient for port operations, where the loading and unloading of cargo ships is critical. Its robust construction and reliable safety features ensure that it can handle various shipping materials, including bulk coils and steel products, with ease.


Storage Yards and Warehouses: In storage facilities, this crane streamlines the process of stacking and retrieving materials. Its design permits effective space utilization, and the integrated slewing mechanism allows for smooth handling of different types of materials without the risk of damage.


Functional Features:

Slewing Carrier-Beam: The crane's slewing carrier-beam offers optimal versatility, making it suitable for both indoor and outdoor applications within fixed spans.

Cross Structure Design: The crane features a reliable cross structure that provides excellent stability while minimizing the risk of swinging during operation. This enhances safety for operators and surrounding personnel.

Adaptability: The lower section of the carrier-beam can accommodate specialized lifting attachments, including magnetic chucks and tongs, further expanding the crane's functionality. This adaptability allows for efficient handling of materials with varying specifications and forms.


In summary, the Hang Beam Double Girder Overhead Crane is a robust solution for managing heavy materials across diverse industries. Its combination of a rotatable hanging beam, reliable structure, and adaptability makes it an essential tool for enhancing operational efficiency and safety in various handling applications.
